CEE surface-mounted socket, 5 pole, 16 A/380-415 V, red, IP67, PKY16G735
Unit Price (€ / pc.)
47.8618 € *
Standard delivery time from the manufacturer is: 2 Weeks

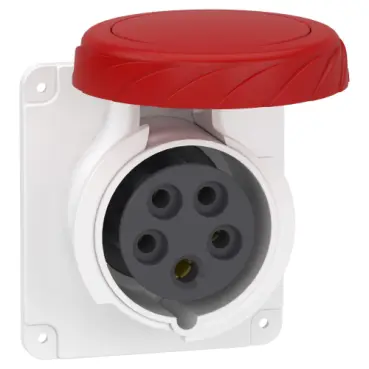

PratiKa socket, PKY16G735, Schneider Electric
This Pratika industrial socket with fast connection connection is straight panel mounted. It has 3P+N+E poles, rated current is 16A and the operating voltage is 400VAC. The dimensions of the base plate are (W) 90 mm x (H) 100 mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 16A is 1 mm² to 2.5 mm². The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | red | |
| Product type | surface-mounted socket | |
| Connection | clamp connection | |
| Degree of protection (IP) | IP67 | |
| Pin number | 5 pole | |
| Nominal power | 16 A/380-415 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| RoHS conform | Yes |
