PKX32M735 | Schneider Electric

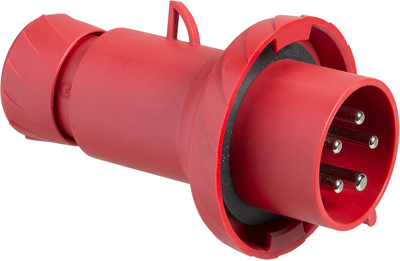

CEE plug, 5 pole, 32 A/380-415 V, red, 6 h, IP67, PKX32M735

Order No.: 04P5442
EAN: 4099889882827
MPN:
PKX32M735
Series: PratiKa
PKX32M735 Schneider Electric CEE Connectors
Image may differ
Unit Price (€ / pc.)
50.5274 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
50.53 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
50.5274 €

Pratika industrial wander plug, PKX32M735, Schneider Electric

This Pratika industrial wander plug with fast connection connection is straight. It has 3P+N+E poles, rated current is 32A and the operating voltage is 400VAC. The dimensions of the base plate are (W) 102 mm x (H) 160 mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 32A are 2.5 mm² to 10 mm². The color of the socket is red to easily identify the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.

Technical specifications
Pin number 5 pole
Cable cross-section 2.5-10 mm²
Connection IDC connection
Degree of protection (IP) IP67
Version plug
Nominal power 32 A/380-415 V
Colour red
Frequency range 50 to 60 Hz
Logistics
Country of origin IT
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
Sustainable Yes
SVHC free No
Substance description Lead
