PKX16M725 | Schneider Electric

CEE plug, 5 pole, 16 A/200-250 V, blue, 9 h, IP67, PKX16M725

Order No.: 04P5411
EAN: 4099889882513
MPN:
PKX16M725
Series: PratiKa
PKX16M725 Schneider Electric CEE Connectors

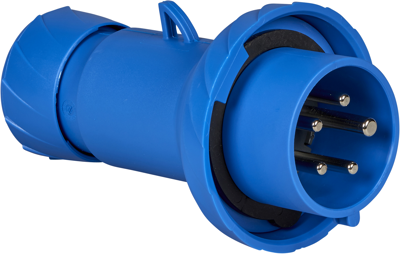

Image may differ
Unit Price (€ / pc.)
51.0867 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
51.09 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
51.0867 €

Pratika industrial wander plug, PKX16M725, Schneider Electric

This Pratika industrial wander plug with fast connection connection is straight. It has 3P+N+E poles, rated current is 16A and the operating voltage is 230VAC. The dimensions of the base plate are (W) 89 mm x (H) 142 mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 16A are 1 mm² to 2.5 mm². The color of the socket is blue to easily identify the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 9h.

Technical specifications
Pin number 5 pole
Cable cross-section 1.0-2.5 mm²
Connection IDC connection
Degree of protection (IP) IP67
Version plug
Nominal power 16 A/200-250 V
Colour blue
Frequency range 50 to 60 Hz
Logistics
Country of origin IT
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
Sustainable Yes
SVHC free No
Substance description Lead
