PKX16M423 | Schneider Electric

CEE plug, 3 pole, 16 A/200-250 V, blue, 6 h, IP44, PKX16M423

Order No.: 04P5396
EAN: 4099889882360
MPN:
PKX16M423
Series: PratiKa

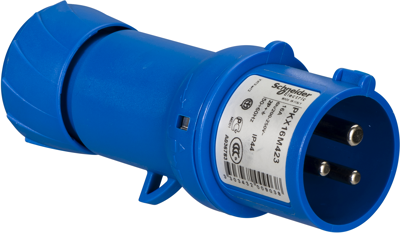

PKX16M423 Schneider Electric CEE Connectors Image 1

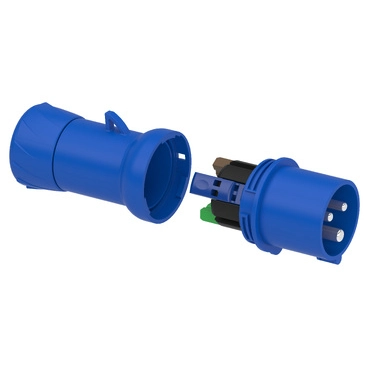

PKX16M423 Schneider Electric CEE Connectors Image 2
Image may differ
Unit Price (€ / pc.)
23.2526 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
23.25 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
23.2526 €

Pratika industrial wander plug, PKX16M423, Schneider Electric

This Pratika industrial wander plug with fast connection connection is straight. It has 2P+E poles, rated current is 16A and the operating voltage is 230VAC. The dimensions of the base plate are (W) 59 mm x (H) 129 mm. The degree of protection is IP44 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 16A are 1 mm² to 2.5 mm². The color of the socket is blue to easily identify the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.

Technical specifications
Pin number 3 pole
Cable cross-section 1.0-2.5 mm²
Connection IDC connection
Degree of protection (IP) IP44
Version plug
Nominal power 16 A/200-250 V
Colour blue
Frequency range 50 to 60 Hz
Logistics
Country of origin IT
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
Sustainable Yes
SVHC free No
Substance description Lead
