PKX16M413 | Schneider Electric

CEE plug, 3 pole, 16 A/100-130 V, yellow, 4 h, IP44, PKX16M413

Order No.: 04P5393
EAN: 4099889882339
MPN:
PKX16M413
Series: PratiKa
PKX16M413 Schneider Electric CEE Connectors
Image may differ
Unit Price (€ / pc.)
41.174 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
41.17 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
41.174 €

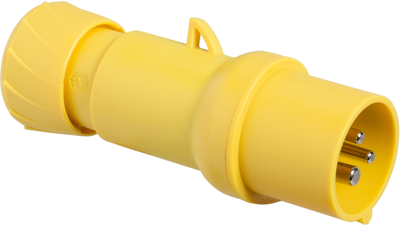

Pratika industrial wander plug, PKX16M413, Schneider Electric

This Pratika industrial wander plug with fast connection connection is straight. It has 2P+E poles, rated current is 16A and the operating voltage is 110VAC. The dimensions of the base plate are (W) 59 mm x (H) 129 mm. The degree of protection is IP44 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 16A are 1 mm² to 2.5 mm². The color of the socket is yellow to easily identify the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 4h.

Technical specifications
Pin number 3 pole
Cable cross-section 1.0-2.5 mm²
Connection IDC connection
Degree of protection (IP) IP44
Version plug
Nominal power 16 A/100-130 V
Colour yellow
Frequency range 50 to 60 Hz
Logistics
Country of origin IT
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
Sustainable Yes
SVHC free No
Substance description Lead
