PKF32M7B5 | Schneider Electric
CEE jack, 5 pole, 32 A/>50V, green, 9 h, IP67, PKF32M7B5

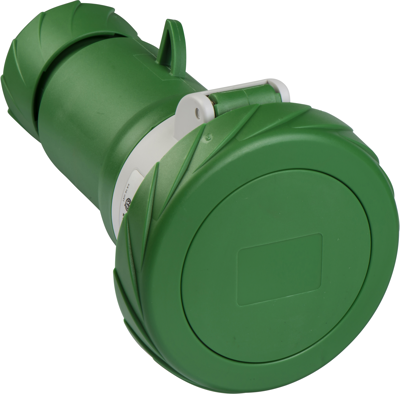

PratiKa wander socket - straight, PKF32M7B5, Schneider Electric
This PratiKa industrial wander socket with captive screws connection is straight. It has 3P+N+E pole, rated current is 32A and the operating voltage is 50VAC to 500VAC. The dimensions of the wander socket are (W) 104mm x (H) 104mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 32A is 11.5mm to 21mm for 2.5mm² to 10mm² cables. The color of the socket is grey (RAL 7035) with green easy identification of the operating voltage. The frequency is 100Hz to 300Hz. The clock position of contact is 10h.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | jack | |
| Pin number | 5 pole | |
| Nominal power | 32 A/>50V | |
| Frequency range | 50 to 60 Hz | |
| Connection | screw connection | |
| Cable cross-section | 2.5-10 mm² | |
| Colour | green | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
