PKF32M734 | Schneider Electric

CEE jack, 4 pole, 32 A/380-415 V, red, 6 h, IP67, PKF32M734

Order No.: 04P5363
EAN: 4099889882308
MPN:
PKF32M734
Series: PratiKa
PKF32M734 Schneider Electric CEE Connectors Image 1
PKF32M734 Schneider Electric CEE Connectors Image 2
Image may differ
Unit Price (€ / pc.)
56.4893 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
56.49 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
56.4893 €

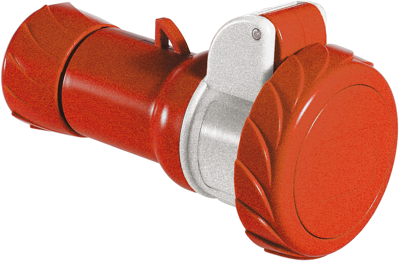

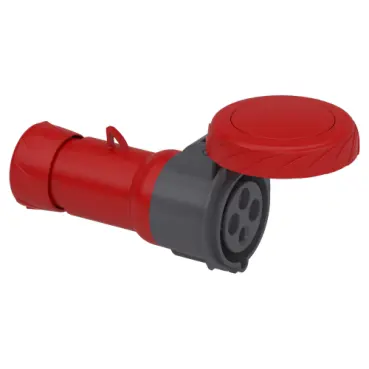

PratiKa wander socket - straight, PKF32M734, Schneider Electric

This Pratika industrial wander socket with captive screws connection is straight. It has 3P+E poles, rated current is 32A and the operating voltage is 380VAC to 415VAC. The dimensions of the base plate are (W) 99 mm x (H) 99 mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 32A is 11.5 mm to 21 mm for 2.5 mm² to 10 mm² cables. The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.

Technical specifications
Pin number 4 pole
Cable cross-section 2.5-10 mm²
Connection screw connection
Degree of protection (IP) IP67
Version jack
Nominal power 32 A/380-415 V
Colour red
Frequency range 50 to 60 Hz
Logistics
Country of origin IT
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
Sustainable Yes
SVHC free No
Substance description Lead
