PKF16G434 | Schneider Electric
CEE surface-mounted socket, 4 pole, 16 A/380-415 V, red, IP44, PKF16G434
Unit Price (€ / pc.)
29.0836 € *
Standard delivery time from the manufacturer is: 2 Weeks

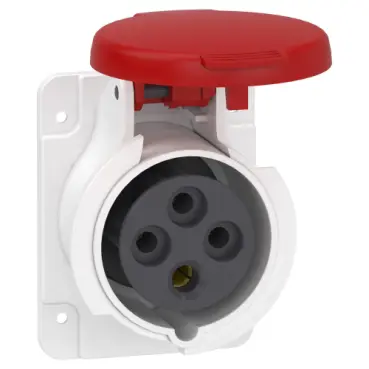

Pratika industrial socket, PKF16G434, Schneider Electric
This Pratika industrial socket with captive screws connection is straight panel mounted. It has 3P+E poles, rated current is 16A and the operating voltage is 400VAC. The dimensions of the base plate are (W) 68 mm x (H) 85 mm. The degree of protection is IP44 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 16A is 1 mm² to 4 mm². The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
Technical specifications
| Pin number | 4 pole | |
| Connection | screw connection | |
| Degree of protection (IP) | IP44 | |
| Version | surface-mounted socket | |
| Nominal power | 16 A/380-415 V | |
| Colour | red |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| SVHC free | No |
| Substance description | Lead |
