PKF16F444 | Schneider Electric
CEE surface-mounted socket, 4 pole, 16 A/480-500 V, black, IP44, PKF16F444
PratiKa socket - screw - angled, PKF16F444, Schneider Electric

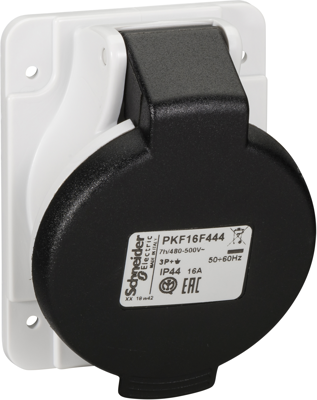

This PratiKa industrial socket with captive screws connection is angled panel-mounted. It has 3P+E pole, rated current is 16A and the operating voltage is 480VAC to 500VAC. The dimensions of the base plate are (W) 65mm x (H) 85mm. The degree of protection is IP44 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 16A is 1mm² to 4mm² cables. The color of the socket is grey (RAL 7035) with black easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 7h.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | surface-mounted socket | |
| Pin number | 4 pole | |
| Nominal power | 16 A/480-500 V | |
| Connection | screw connection | |
| Colour | black | |
| Degree of protection (IP) | IP44 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
