PKE32M7C4 | Schneider Electric
CEE plug, 4 pole, 32 A/380-440 V, red, IP67, PKE32M7C4
Unit Price (€ / pc.)
88.5598 € *
Standard delivery time from the manufacturer is: 2 Weeks

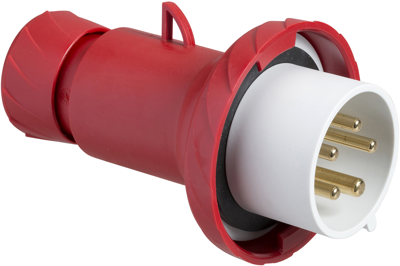

Pratika industrial wander plug, PKE32M7C4, Schneider Electric
This Pratika industrial wander plug with captive screws connection is straight. It has 3P+E poles, rated current is 32A and the operating voltage is 400VAC. The dimensions of the base plate are (W) 95 mm x (H) 95 mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 32A are 2.5 mm² to 6 mm². The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 3h.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Colour | red | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP67 | |
| Frequency range | 50 to 60 Hz | |
| Nominal power | 32 A/380-440 V | |
| Product type | plug | |
| Cable cross-section | 2.5-6.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| Sustainable | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
