PKE32M734 | Schneider Electric
CEE plug, 4 pole, 32 A/380-415 V, red, 6 h, IP67, PKE32M734
Unit Price (€ / pc.)
47.3144 € *
Standard delivery time from the manufacturer is: 1 Week

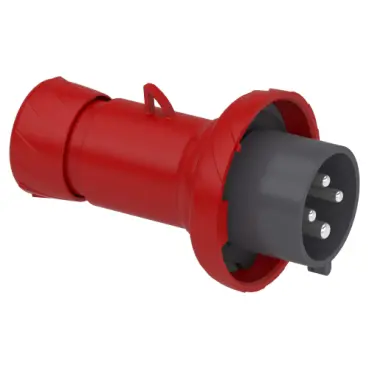

Pratika industrial wander plug, PKE32M734, Schneider Electric
This Pratika industrial wander plug with captive screws connection is straight. It has 3P+E poles, rated current is 32A and the operating voltage is 400VAC. The dimensions of the base plate are (W) 95 mm x (H) 152 mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 32A is 11.5 mm to 21 mm for 2.5 mm² to 10 mm² cables. The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | red | |
| Product type | plug | |
| Cable cross-section | 2.5-10 mm² | |
| Frequency range | 50 to 60 Hz | |
| Connection | screw connection | |
| Degree of protection (IP) | IP67 | |
| Pin number | 4 pole | |
| Nominal power | 32 A/380-415 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| RoHS conform | Yes |
