PKE16M713 | Schneider Electric
CEE plug, 3 pole, 16 A/100-130 V, yellow, 4 h, IP67, PKE16M713
Unit Price (€ / pc.)
55.8467 € *
Available in 3 Days: 9 pcs. - if ordered today

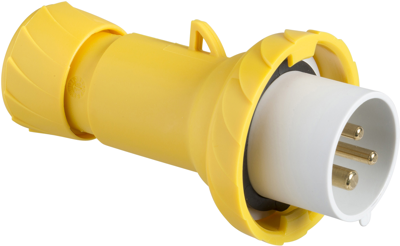

Pratika industrial wander plug, PKE16M713, Schneider Electric
This Pratika industrial wander plug with captive screws connection is straight. It has 2P+E poles, rated current is 16A and the operating voltage is 110VAC. The dimensions of the base plate are (W) 73 mm x (H) 129 mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 16A is 8 mm to 15 mm for 1 mm² to 4 mm² cables. The color of the socket is light grey (RAL 7035) with yellow easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 4h.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Colour | yellow | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP67 | |
| Frequency range | 50 to 60 Hz | |
| Nominal power | 16 A/100-130 V | |
| Product type | plug | |
| Cable cross-section | 1.0-4.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| Sustainable | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
