PKB63T534 | Schneider Electric
CEE surface-mounted socket, 4 pole, 63 A/380-415 V, red, IP65, PKB63T534
Unit Price (€ / pc.)
505.2978 € *
Standard delivery time from the manufacturer is: 3 Weeks

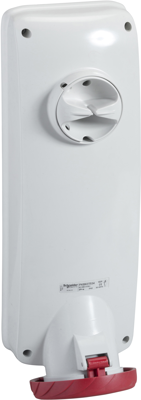

Unika interlocked socket, PKB63T534, Schneider Electric
This PratiKa industrial interlocked socket with captive screws connection is panel-mounted. It has 3P+E pole, rated current is 63A and the operating voltage is 380VAC to 415VAC. The dimensions of the base plate are (W) 140 mm x (H) 430 mm. The degree of protection is IP65 and IK09. The fire resistance is 750°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 63A is 25 mm for 35 mm² cables. The color of the socket is grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | red | |
| Connection | screw connection | |
| Degree of protection (IP) | IP65 | |
| Nominal power | 63 A/380-415 V | |
| Product type | surface-mounted socket | |
| Pin number | 4 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
