83167 | Schneider Electric

CEE wall socket, 4 pole, 32 A/200-250 V, blue, 9 h, IP67, 83167

Order No.: 01P6281
EAN: 4099889880731
MPN:
83167
Series: PratiKa
83167 Schneider Electric CEE Connectors
Image may differ
Unit Price (€ / pc.)
122.4986 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
122.50 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
122.4986 €

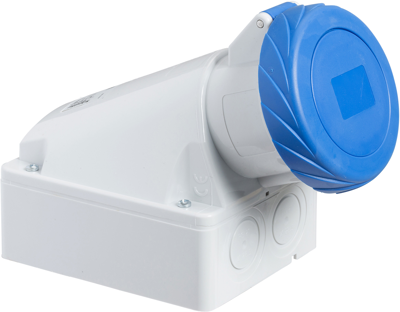

PratiKa industrial socket, 83167, Schneider Electric

This Pratika industrial socket with completely loosened captive screws connection is wall mounted. It has 3P+E poles, rated current is 32A and the operating voltage is 200VAC to 250VAC. The dimensions of the base plate are (W) 106 mm x (H) 191 mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 32A is 11.5 mm to 21 mm for 2.5 mm² to 10 mm² cables. The color of the socket is light grey (RAL 7035) with blue easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 9h.

Technical specifications
Pin number 4 pole
Cable cross-section 2.5-10 mm²
Connection screw connection
Degree of protection (IP) IP67
Version wall socket
Nominal power 32 A/200-250 V
Colour blue
Frequency range 50 to 60 Hz
Logistics
Country of origin IT
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
