83109 | Schneider Electric
CEE wall socket, 5 pole, 16 A/380-415 V, red, 6 h, IP44, 83109
Unit Price (€ / pc.)
39.6865 € *
Standard delivery time from the manufacturer is: 2 Weeks

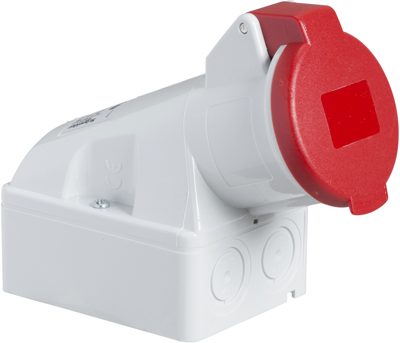

PratiKa industrial socket, 83109, Schneider Electric
This Pratika industrial socket with completely loosened captive screws connection is wall mounted. It has 3P+N+E poles, rated current is 16A and the operating voltage is 380VAC to 415VAC. The dimensions of the base plate are (W) 106 mm x (H) 130 mm. The degree of protection is IP44 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 16A is 8 mm to 15 mm for 1 mm² to 4 mm² cables. The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | red | |
| Product type | wall socket | |
| Cable cross-section | 1.0-4.0 mm² | |
| Frequency range | 50 to 60 Hz | |
| Connection | screw connection | |
| Degree of protection (IP) | IP44 | |
| Pin number | 5 pole | |
| Nominal power | 16 A/380-415 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Substance description | 1, 2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
