82901 | Schneider Electric
CEE surface-mounted socket, 2 pole, 16 A/20-25 V, purple, IP44, 82901
Unit Price (€ / pc.)
39.0915 € *
Standard delivery time from the manufacturer is: 2 Weeks

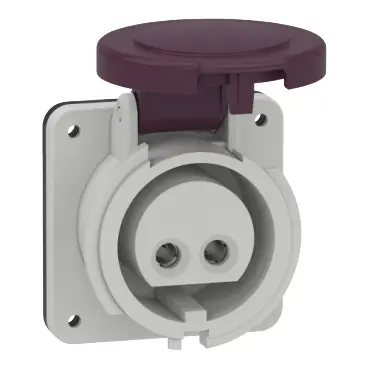

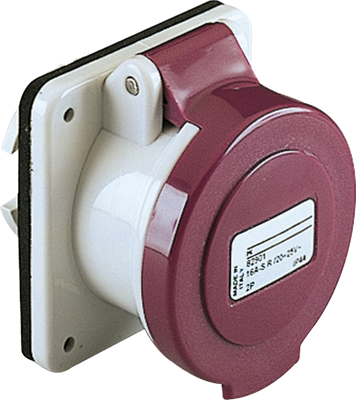

PratiKa industrial socket, 82901, Schneider Electric
This Pratika industrial socket with completely loosened captive screws connection is straight panel mounted. It has 2P poles, rated current is 16A and the operating voltage is 20VAC to 25VAC. The dimensions of the base plate are (W) 65 mm x (H) 65 mm. The degree of protection is IP44 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 16A is 1 mm² to 2.5 mm². The color of the socket is light grey (RAL 7035) with violet easy identification of the operating voltage. The frequency is 50Hz or 60Hz.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | purple | |
| Product type | surface-mounted socket | |
| Cable cross-section | 1.0-2.5 mm² | |
| Frequency range | 50 to 60 Hz | |
| Connection | screw connection | |
| Degree of protection (IP) | IP44 | |
| Pin number | 2 pole | |
| Nominal power | 16 A/20-25 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
