82081 | Schneider Electric
CEE surface-mounted socket, 3 pole, 16 A/200-250 V, blue, 6 h, IP65, 82081
Unit Price (€ / pc.)
244.1761 € *
Standard delivery time from the manufacturer is: 1 Week

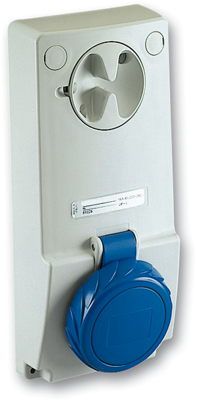

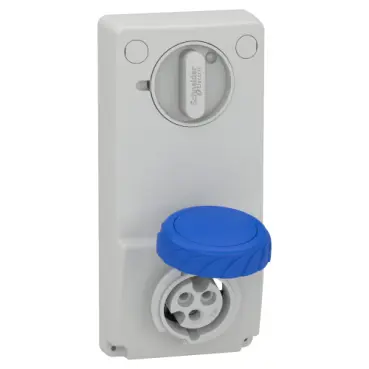

Unika interlocked socket, 82081, Schneider Electric
This PratiKa industrial interlocked socket with captive screws connection is panel-mounted. It has 2P+E pole, rated current is 16A and the operating voltage is 200VAC to 250VAC. The dimensions of the base plate are (W) 103 mm x (H) 225 mm. The degree of protection is IP65 and IK09. The fire resistance is 750°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 16A is 25 mm for 10 mm² cables. The color of the socket is grey (RAL 7035) with blue easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 3 pole | |
| Colour | blue | |
| Degree of protection (IP) | IP65 | |
| Cable cross-section | 10 mm² | |
| Connection | screw connection | |
| Nominal power | 16 A/200-250 V | |
| Frequency range | 50 to 60 Hz | |
| Product type | surface-mounted socket |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
