81894 | Schneider Electric

CEE wall plug, 4 pole, 125 A/380-415 V, red, 6 h, IP67, 81894

Order No.: 01P6049
EAN: 4099889878585
MPN:
81894
Series: PratiKa
81894 Schneider Electric CEE Connectors
Image may differ
Unit Price (€ / pc.)
319.1461 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
319.15 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
319.1461 €

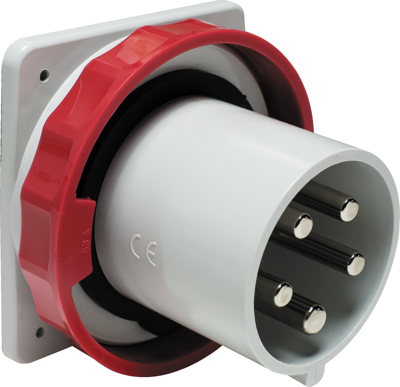

Pratika industrial plug, 81894, Schneider Electric

This Pratika industrial plug with captive screws connection is straight panel mounted. It has 3P+E poles, rated current is 125A and the operating voltage is 400VAC. The dimensions of the base plate are (W) 131 mm x (H) 325 mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 125A is 26 mm to 48 mm for 16 mm² to 70 mm² cables. The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.

Technical specifications
Filter Property Value
Colour red
Product type wall plug
Cable cross-section 16-70 mm²
Frequency range 50 to 60 Hz
Connection screw connection
Degree of protection (IP) IP67
Pin number 4 pole
Nominal power 125 A/380-415 V
Logistics
Property Value
Country of origin IT
Customs tariff number 85366990
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
