81882 | Schneider Electric

CEE wall plug, 4 pole, 63 A/380-415 V, red, 6 h, IP67, 81882

Order No.: 01P6044
EAN: 4099889878530
MPN:
81882
Series: PratiKa
81882 Schneider Electric CEE Connectors
Image may differ
Unit Price (€ / pc.)
142.2407 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
142.24 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
142.2407 €

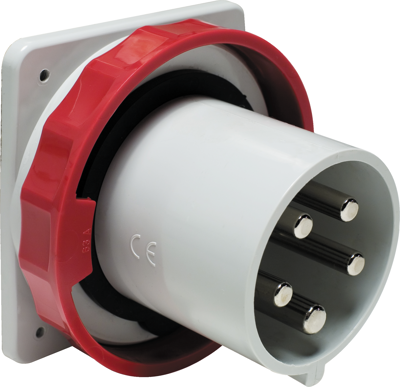

Pratika industrial plug, 81882, Schneider Electric

This Pratika industrial plug with captive screws connection is straight panel mounted. It has 3P+E poles, rated current is 63A and the operating voltage is 400VAC. The dimensions of the base plate are (W) 110 mm x (H) 265 mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 63A is 17 mm to 31 mm for 6 mm² to 25 mm² cables. The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.

Technical specifications
Pin number 4 pole
Cable cross-section 6.0-25 mm²
Connection screw connection
Degree of protection (IP) IP67
Version wall plug
Nominal power 63 A/380-415 V
Colour red
Frequency range 50 to 60 Hz
Logistics
Country of origin IT
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description 1, 2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME)
