81879 | Schneider Electric
CEE wall plug, 4 pole, 63 A/200-250 V, blue, 9 h, IP67, 81879
Unit Price (€ / pc.)
151.4989 € *
Standard delivery time from the manufacturer is: 2 Weeks

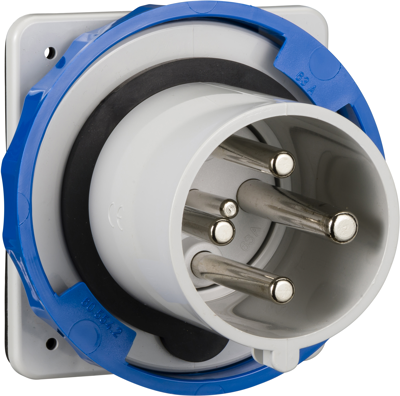

Pratika industrial plug, 81879, Schneider Electric
This Pratika industrial plug with captive screws connection is straight panel-mounted. It has 3P+E pole, rated current is 63A and the operating voltage is 200VAC to 250VAC. The dimensions of the base plate are (W) 100 mm x (H) 107 mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 63A is 6 mm² to 25 mm² cables. The color of the plug is grey (RAL 7035) with blue easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 9h.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | blue | |
| Connection | screw connection | |
| Degree of protection (IP) | IP67 | |
| Nominal power | 63 A/200-250 V | |
| Cable cross-section | 6.0-25 mm² | |
| Frequency range | 50 to 60 Hz | |
| Product type | wall plug | |
| Pin number | 4 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
