81695 | Schneider Electric

CEE surface-mounted socket, 5 pole, 125 A/380-415 V, red, 6 h, IP67, 81695

Order No.: 01P6021
EAN: 4099889878356
MPN:
81695
Series: PratiKa

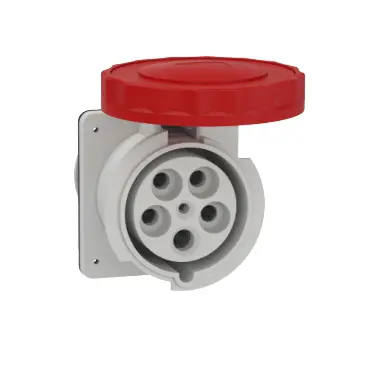

81695 Schneider Electric CEE Connectors Image 1

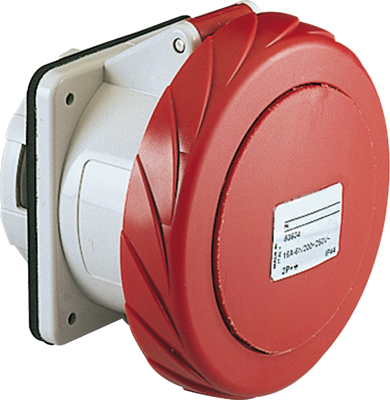

81695 Schneider Electric CEE Connectors Image 2
Image may differ
Unit Price (€ / pc.)
452.1167 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
452.12 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
452.1167 €

PratiKa industrial socket, 81695, Schneider Electric

This Pratika industrial socket with completely loosened captive screws connection is straight panel mounted. It has 3P+N+E poles, rated current is 125A and the operating voltage is 400VAC. The dimensions of the base plate are (W) 129 mm x (H) 114 mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 125A is 26 mm to 48 mm for 16 mm² to 70 mm² cables. The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.

Technical specifications
Pin number 5 pole
Cable cross-section 16-70 mm²
Connection screw connection
Degree of protection (IP) IP67
Version surface-mounted socket
Nominal power 125 A/380-415 V
Colour red
Frequency range 50 to 60 Hz
Logistics
Country of origin IT
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description 1, 2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME)
