81383 | Schneider Electric
CEE plug, 5 pole, 63 A/380-415 V, red, 6 h, IP67, 81383
Unit Price (€ / pc.)
108.0044 € *
Standard delivery time from the manufacturer is: 1 Week

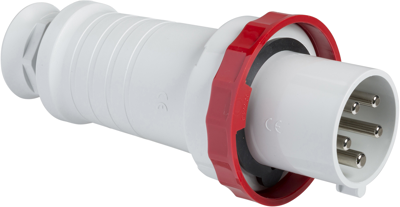

Pratika industrial wander plug, 81383, Schneider Electric
This Pratika industrial wander plug with captive screws connection is straight. It has 3P+N+E pole, rated current is 63A and the operating voltage is 380VAC to 415VAC. The dimensions of the wander plug are (W) 110 mm x (H) 265 mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 63A is 17 mm to 31 mm for 6 mm² to 25 mm² cables. The color of the plug is grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | red | |
| Connection | screw connection | |
| Degree of protection (IP) | IP67 | |
| Nominal power | 63 A/380-415 V | |
| Cable cross-section | 6.0-25 mm² | |
| Frequency range | 50 to 60 Hz | |
| Product type | plug | |
| Pin number | 5 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
