ZBRM22AB0 | Schneider Electric

Wireless and battery-free manual switch, unlit, groping, waistband round, green/red, front ring black, mounting Ø 22 mm, ZBRM22AB0

Order No.: 06P3950
EAN: 4099889240528
MPN:
ZBRM22AB0
Series: Harmony XB5R
ZBRM22AB0 Schneider Electric Actuators, Signal Elements and Front Elements
Image may differ
Unit Price (€ / pc.)
215.1639 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
215.16 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
215.1639 €

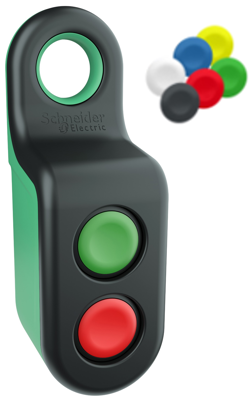

Wireless and batteryless transmitter, ZBRM22AB0, Schneider Electric

This housing is equipped with two 22 mm radio pushbuttons. It is programmed into the respective receiver using a simple button combination. The transmitter and receiver communicate via a worldwide free frequency band of 2.4 GHz and are approved for ZigBee Green Power. The possible range is up to 100 metres in an open field and 25 metres in a closed switch cabinet.

Technical specifications
Contact function groping
Installation diameter 22 mm
Front ring colour black
Actuator colour green/red
Product type wireless and battery-free manual switch
Protection class IP65
Collar shape of the front frame round
can be illuminated No
Logistics
Country of origin FR
Customs tariff number 85365080
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
Sustainable Yes
