ZB6DE3 | Schneider Electric
Pushbutton, illuminable, groping, waistband rectangular, green, front ring black, mounting Ø 16 mm, ZB6DE3
Unit Price (€ / pc.)
7.6279 € *
Standard delivery time from the manufacturer is: 2 Weeks

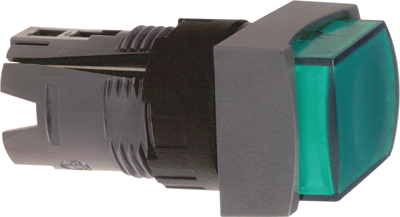

Illuminated pushbutton, ZB6DE3, Schneider Electric
This Harmony ZB6DE3 is a green rectangular projecting illuminated push button head, spring return, 12V to 24V. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact function | groping | |
| Installation diameter | 16 mm | |
| Front ring colour | black | |
| Actuator colour | green | |
| Product type | pushbutton | |
| Protection class | IP65 | |
| Collar shape of the front frame | rectangular | |
| can be illuminated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
| Sustainable | Yes |
