ZB6CW4 | Schneider Electric
Pushbutton, illuminable, groping, waistband square, red, front ring black, mounting Ø 16 mm, ZB6CW4
Unit Price (€ / pc.)
7.2352 € *
Standard delivery time from the manufacturer is: 1 Week

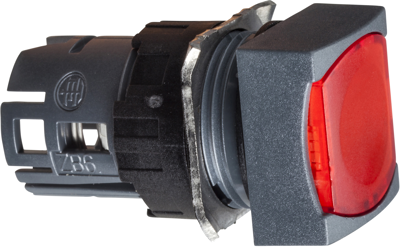

Illuminated pushbutton, ZB6CW4, Schneider Electric
This Harmony ZB6CW4 is a red square flush illuminated push button head, spring return, 12V to 24V. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Installation diameter | 16 mm | |
| Front ring colour | black | |
| Protection class | IP65 | |
| Contact function | groping | |
| Actuator colour | red | |
| Product type | pushbutton | |
| can be illuminated | Yes | |
| Collar shape of the front frame | square |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| RoHS conform | Yes |
