ZB6AF6 | Schneider Electric
Pushbutton switch, illuminable, latching, waistband round, blue, front ring black, mounting Ø 16 mm, ZB6AF6
Unit Price (€ / pc.)
7.4613 € *
Standard delivery time from the manufacturer is: 2 Weeks

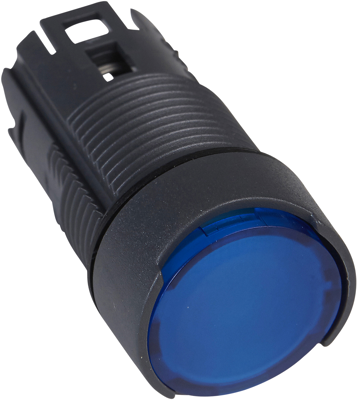

Illuminated pushbutton, ZB6AF6, Schneider Electric
This Harmony ZB6AF6 is a blue flush illuminated push button head, latching for integral LED. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Installation diameter | 16 mm | |
| Front ring colour | black | |
| Protection class | IP65 | |
| Contact function | latching | |
| Actuator colour | blue | |
| Product type | pushbutton switch | |
| can be illuminated | Yes | |
| Collar shape of the front frame | round |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| RoHS conform | Yes |
