ZB6AD22 | Schneider Electric
Toggle switch, unlit, latching, waistband round, black, front ring black, 2 x 60°, mounting Ø 16 mm, ZB6AD22
Unit Price (€ / pc.)
11.2455 € *
Standard delivery time from the manufacturer is: 1 Week
Front element selector switch, ZB6AD22, Schneider Electric

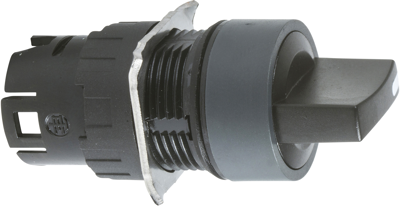

This Harmony ZB6AD22 is a black selector switch head, 2-position stay put. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Installation diameter | 16 mm | |
| Protection class | IP65 | |
| Rotation angle | 2 x 60° | |
| can be illuminated | No | |
| Contact function | latching | |
| Collar shape of the front frame | round | |
| Actuator colour | black | |
| Product type | toggle switch | |
| Front ring colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| RoHS conform | Yes |
| SVHC free | Yes |
