ZB5FH13 | Schneider Electric
Pushbutton switch, illuminable, latching, waistband round, white, mounting Ø 30.5 mm, ZB5FH13
Unit Price (€ / pc.)
21.1463 € *
Standard delivery time from the manufacturer is: 3 Weeks

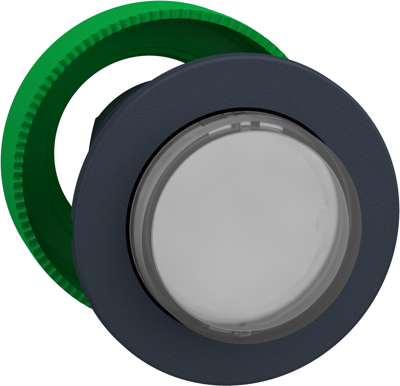

Push-button head, ZB5FH13, Schneider Electric
This 30.5 mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its illuminated clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| can be illuminated | Yes | |
| Contact function | latching | |
| Installation diameter | 30.5 mm | |
| Protection class | IP66 | |
| Product type | pushbutton switch | |
| Collar shape of the front frame | round | |
| Actuator colour | white |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| SVHC free | Yes |
| RoHS conform | Yes |
