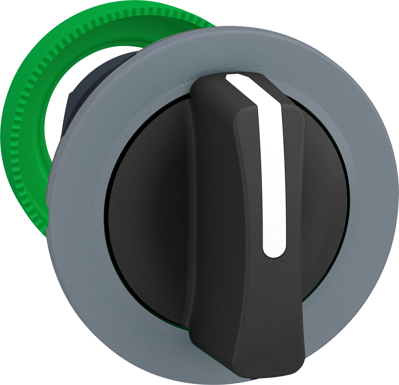

ZB5FD8C0 | Schneider Electric

Toggle switch, 3 positions, unlit, latching, waistband round, black, front ring gray, 45°, mounting Ø 30.5 mm, ZB5FD8C0

Order No.: 27L5698
EAN: 3606489772208
MPN:
ZB5FD8C0
Series: Harmony ZB5
ZB5FD8C0 Schneider Electric Actuators, Signal Elements and Front Elements
Image may differ
Unit Price (€ / pc.)
15.0297 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
15.03 € *
Price list
Quantity
Price per unit*
1 pcs.
15.0297 €
3 pcs.
14.3633 €
5 pcs.
13.7445 €
10 pcs.
12.9948 €
*incl. VAT plus shipping costs
Subject to prior sale

Selector switch, ZB5FD8C0, Schneider Electric

Flush mounted selector switch head, Harmony XB5, plastic, black, 30mm, 3 positions, spring return right to center, grey bezel.

Features

  • Quick and easy assembly and disassembly
  • Robustness to withstand harsh environments
  • With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
  • A wide choice of contact blocks for general purposes or specific applications (low current, standard)
  • Excellent mechanical connection with operator head
Technical specifications
Filter Property Value
Collar shape of the front frame round
Protection class IP66/IP67
Contact function latching
Front ring colour gray
can be illuminated No
Installation diameter 30.5 mm
Actuator colour black
Product type toggle switch
Version 3 positions
Rotation angle 45°
Logistics
Property Value
Customs tariff number 85389099
Country of origin FR
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
