ZB5FD3 | Schneider Electric
Toggle switch, 3 positions, unlit, latching, waistband round, black, front ring gray, 45°, mounting Ø 30.5 mm, ZB5FD3
Unit Price (€ / pc.)
11.8762 € *
Standard delivery time from the manufacturer is: 1 Week

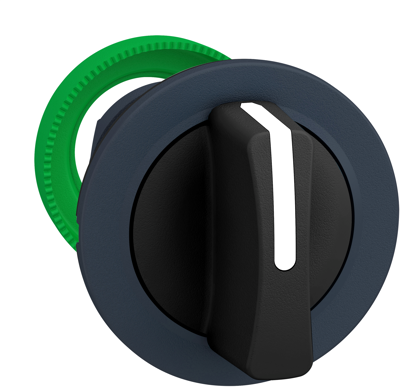

Selector switch, ZB5FD3, Schneider Electric
Flush mounted selector switch head, Harmony XB5, plastic, black, 30mm, 3 positions, stay put.
Features
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
- A wide choice of contact blocks for general purposes or specific applications (low current, standard)
- Excellent mechanical connection with operator head
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | toggle switch | |
| can be illuminated | No | |
| Front ring colour | gray | |
| Protection class | IP66/IP67/IP69/IP69K | |
| Version | 3 positions | |
| Rotation angle | 45° | |
| Collar shape of the front frame | round | |
| Actuator colour | black | |
| Installation diameter | 30.5 mm | |
| Contact function | latching |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
