ZB5CA432 | Schneider Electric
Pushbutton, unlit, groping, waistband square, red, front ring black, mounting Ø 22 mm, ZB5CA432
Unit Price (€ / pc.)
7.6636 € *
Standard delivery time from the manufacturer is: 1 Week

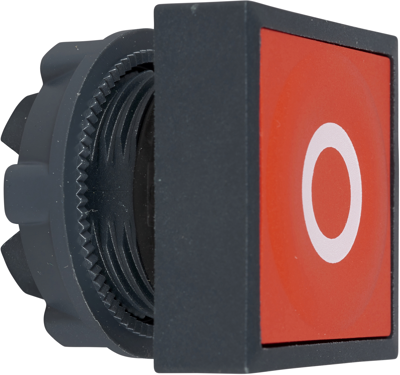

Front element, ZB5CA432, Schneider Electric
This red flush button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and marking. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Collar shape of the front frame | square | |
| Protection class | IP66 | |
| Contact function | groping | |
| Front ring colour | black | |
| can be illuminated | No | |
| Installation diameter | 22 mm | |
| Actuator colour | red | |
| Product type | pushbutton |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
