ZB5AW763 | Schneider Electric
Pushbutton, illuminable, groping, waistband round, blue, front ring black, mounting Ø 22 mm, ZB5AW763
Unit Price (€ / pc.)
34.9384 € *
Standard delivery time from the manufacturer is: 2 Weeks

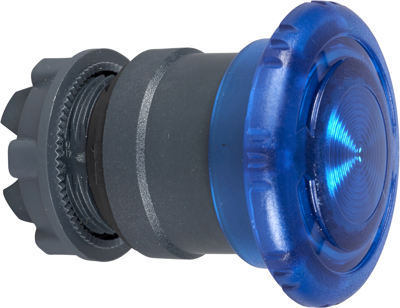

Front element, ZB5AW763, Schneider Electric
This blue illuminated 40mm mushroom shape button head for integral LED is ideal when quick actions are required. It fits for a process or machine to function correctly or where operator movements require highest ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to its illuminated head. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| can be illuminated | Yes | |
| Protection class | IP66 | |
| Installation diameter | 22 mm | |
| Front ring colour | black | |
| Actuator colour | blue | |
| Product type | pushbutton | |
| Collar shape of the front frame | round | |
| Contact function | groping |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| Sustainable | Yes |
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
