ZB5AW533C0 | Schneider Electric
Pushbutton, for universal LED, illuminable, waistband round, green, front ring light gray, mounting Ø 22 mm, ZB5AW533C0
Unit Price (€ / pc.)
10.3173 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
10.32 € *
Price list
Quantity
Price per unit*
1 pcs.
10.3173 €
5 pcs.
9.8532 €
10 pcs.
9.4248 €
15 pcs.
8.9250 €
*incl. VAT plus shipping costs
Subject to prior sale

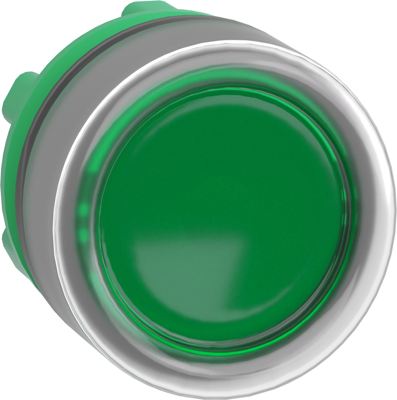

Illuminated push button head, ZB5AW533C0, Schneider Electric
This button head with clear boot provides an ergonomic interface for controlling your machines and a simple solution to prevent dirt and contaminants. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated head and clear colors. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
Features
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- A wide choice of contact blocks for general purposes or specific applications (low current, standard)
- Excellent mechanical connection with operator head
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Installation depth | 37 mm | |
| Actuator colour | green | |
| Protection class | IP66/IP67 | |
| Installation height | 30 mm | |
| Collar shape of the front frame | round | |
| Front ring colour | light gray | |
| Version | for universal LED | |
| Product type | pushbutton | |
| can be illuminated | Yes | |
| Installation diameter | 22 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
