ZB5AS934 | Schneider Electric
Pushbutton, unlit, latching, waistband round, red, front ring black, mounting Ø 22 mm, ZB5AS934
Unit Price (€ / pc.)
45.9816 € *
Standard delivery time from the manufacturer is: 1 Week

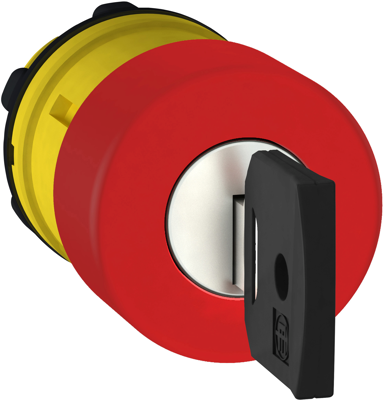

Mushroom pushbutton, ZB5AS934, Schneider Electric
This Harmony XB5 emergency stop / shutdown 30mm mushroom red button head operates with a latched key release (key no.455) mechanism. It provides an ergonomic interface for controlling your machines. It is easily installed on compatible complete emergency stop and switching off push buttons. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 30mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Technical specifications
| Contact function | latching | |
| Installation diameter | 22 mm | |
| Front ring colour | black | |
| Actuator colour | red | |
| Product type | pushbutton | |
| Protection class | IP66 | |
| Collar shape of the front frame | round | |
| can be illuminated | No |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85389099 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Sustainable | Yes |
