ZB5AP3S | Schneider Electric
Front element, unlit, groping, waistband round, green, front ring black, mounting Ø 22 mm, ZB5AP3S
Unit Price (€ / pc.)
10.2221 € *
Standard delivery time from the manufacturer is: 1 Week

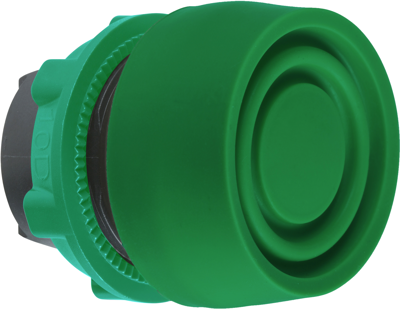

Front element, ZB5AP3S, Schneider Electric
This green colored silicone booted button head provides an ergonomic interface for controlling your machine . It provides also a simple solution to prevent dirt and other contaminants. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Technical specifications
| Contact function | groping | |
| Installation diameter | 22 mm | |
| Front ring colour | black | |
| Actuator colour | green | |
| Product type | front element | |
| Protection class | IP66 | |
| Collar shape of the front frame | round | |
| can be illuminated | No |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85389099 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Sustainable | Yes |
