ZB5AG6 | Schneider Electric

Key switch, unlit, groping, waistband round, front ring black, 2 x 90°, trigger position 0 + 1, mounting Ø 22 mm, ZB5AG6

Order No.: 06P2553
EAN: 3389110905847
MPN:
ZB5AG6
Series: Harmony ZB5
ZB5AG6 Schneider Electric Actuators, Signal Elements and Front Elements
Image may differ
Unit Price (€ / pc.)
37.0209 € *
Available: 1 pcs.
Available in 3 Days: 1,196 pcs. - if ordered today
Total Price:
37.02 € *
Price list
Quantity
Price per unit*
1 pcs.
37.0209 €
5 pcs.
36.0213 €
*incl. VAT plus shipping costs
Subject to prior sale

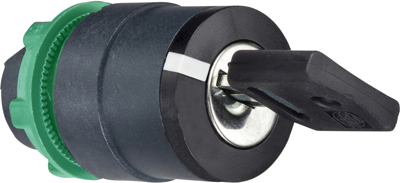

Front element, ZB5AG6, Schneider Electric

This Harmony XB5, head with key (key no.455) for key selector switch has 2 positions, operates with spring return from right to left mechanism with key withdrawal on left and right position. This head with key provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete key selector switch units to provide a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Key removal allowed in only one of the positions, allowing for advanced interlocking between various parts of a machine or process, while limiting human errors.

Technical specifications
Filter Property Value
Front ring colour black
Product type key switch
Contact function groping
Rotation angle 2 x 90°
can be illuminated No
Protection class IP66
Trigger position key 0 + 1
Collar shape of the front frame round
Installation diameter 22 mm
Logistics
Property Value
Customs tariff number 85389099
Country of origin FR
Compliance
Property Value
Substance description Lead
Sustainable Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
