ZB5AG412 | Schneider Electric
Key switch, unlit, latching, waistband round, front ring black, 2 x 90°, trigger position 0 + 1, mounting Ø 22 mm, ZB5AG412
Unit Price (€ / pc.)
58.4171 € *
Standard delivery time from the manufacturer is: 1 Week

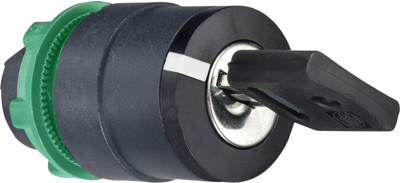

Front element, ZB5AG412, Schneider Electric
This head with key (key no.421E) provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete key selector switch units. It provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Technical specifications
| Contact function | latching | |
| Installation diameter | 22 mm | |
| Front ring colour | black | |
| Trigger position key | 0 + 1 | |
| Product type | key switch | |
| Protection class | IP66 | |
| Rotation angle | 2 x 90° | |
| Collar shape of the front frame | round | |
| can be illuminated | No |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85389099 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Sustainable | Yes |
