ZB5AG410 | Schneider Electric

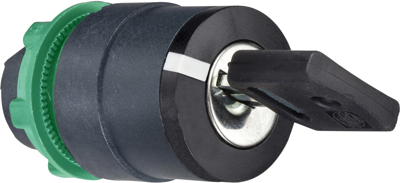

Key switch, unlit, latching, waistband round, black, front ring black, 2 x 90°, trigger position 0 + 1, mounting Ø 22 mm, ZB5AG410
Unit Price (€ / pc.)
61.1184 € *
Standard delivery time from the manufacturer is: 1 Week
Front element, ZB5AG410, Schneider Electric
This head with key (key no.458A) provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete key selector switch units. It provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Collar shape of the front frame | round | |
| Trigger position key | 0 + 1 | |
| Protection class | IP66 | |
| Contact function | latching | |
| Front ring colour | black | |
| can be illuminated | No | |
| Installation diameter | 22 mm | |
| Actuator colour | black | |
| Product type | key switch | |
| Rotation angle | 2 x 90° |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
