ZB5AD5TQ | Schneider Electric

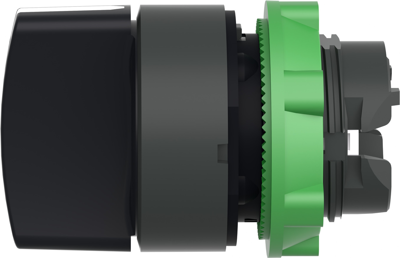

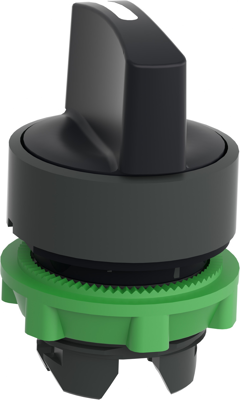

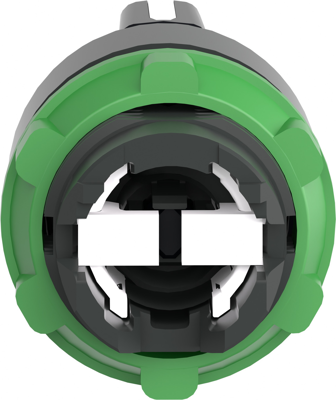

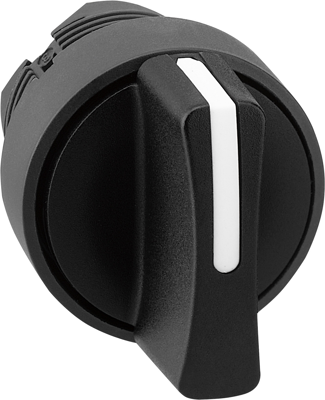

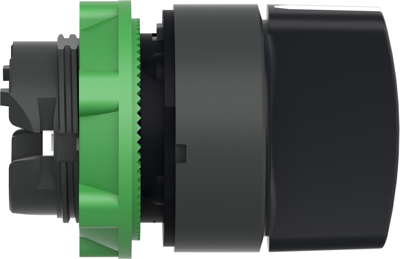

Toggle switch, 3 positions, unlit, latching, waistband round, black, front ring gray, 45°, mounting Ø 22 mm, ZB5AD5TQ
Unit Price (€ / pc.)
11.1027 € *
Standard delivery time from the manufacturer is: 1 Week
Selector switch, ZB5AD5TQ, Schneider Electric
Head for selector switch, Harmony XB5, black handle, 22mm, 3 positions, spring return, set of 100.
Features
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
- A wide choice of contact blocks for general purposes or specific applications (low current, standard)
- Excellent mechanical connection with operator head
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Installation diameter | 22 mm | |
| Protection class | IP67/IP69/IP69K | |
| Rotation angle | 45° | |
| can be illuminated | No | |
| Contact function | latching | |
| Collar shape of the front frame | round | |
| Actuator colour | black | |
| Product type | toggle switch | |
| Front ring colour | gray | |
| Version | 3 positions |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
