ZB5AD203 | Schneider Electric
Toggle switch, unlit, latching, waistband round, green, front ring black, 2 x 90°, mounting Ø 22 mm, ZB5AD203
Unit Price (€ / pc.)
13.4946 € *
Standard delivery time from the manufacturer is: 1 Week

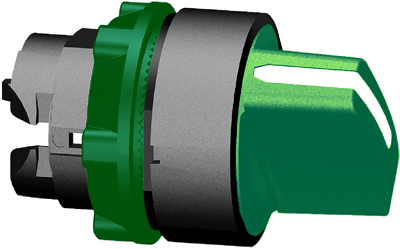

Front element selector switch, ZB5AD203, Schneider Electric
This switch head with green standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It makes it ideal for operation in harsh environments.
Technical specifications
| Contact function | latching | |
| Installation diameter | 22 mm | |
| Front ring colour | black | |
| Actuator colour | green | |
| Product type | toggle switch | |
| Protection class | IP67 | |
| Rotation angle | 2 x 90° | |
| Collar shape of the front frame | round | |
| can be illuminated | No |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85389099 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
| Sustainable | Yes |
