ZB5AA72124 | Schneider Electric
Pushbutton, unlit, groping, waistband rectangular, front ring black, mounting Ø 22 mm, ZB5AA72124
Unit Price (€ / pc.)
22.8242 € *
Standard delivery time from the manufacturer is: 2 Weeks

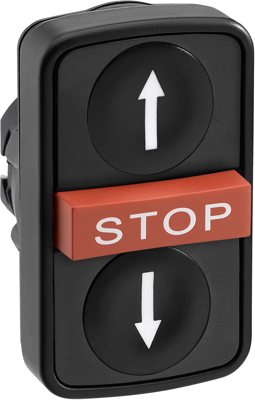

Triple pushbutton, ZB5AA72124, Schneider Electric
This 3-function head provides a complete 3 button interface to your machines with a single panel cut-out, it has 1 red and 2 black buttons. It is easily installed into a standard 22mm diameter cut-outs. It is assembled with a collar and contact blocks to fulfill a large variety of functions. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 and IP69K. It makes it ideal for operation in harsh environments.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| can be illuminated | No | |
| Protection class | IP67 | |
| Installation diameter | 22 mm | |
| Front ring colour | black | |
| Product type | pushbutton | |
| Collar shape of the front frame | rectangular | |
| Contact function | groping |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| Sustainable | Yes |
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
