ZB4RTA5 | Schneider Electric

Pushbutton, with transmitter, unlit, groping, waistband round, yellow, front ring silver, mounting Ø 22 mm, ZB4RTA5

Order No.: 06P2326
EAN: 4099889235630
MPN:
ZB4RTA5
Series: Harmony XB4
ZB4RTA5 Schneider Electric Actuators, Signal Elements and Front Elements
Image may differ
Unit Price (€ / pc.)
72.7328 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
72.73 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
72.7328 €

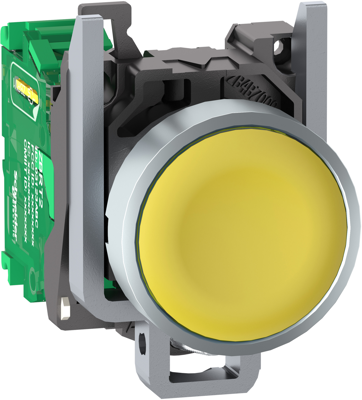

Pushbutton, ZB4RTA5, Schneider Electric

This yellow metal radio pushbutton can be mounted and installed in a 22 mm hole. It is programmed into the respective receiver using a simple button combination. The transmitter and receiver communicate via a worldwide free frequency band of 2.4 GHz and are approved for ZigBee Green Power. The possible range is up to 100 metres in an open field and 25 metres in a closed switch cabinet.

Technical specifications
Filter Property Value
Version with transmitter
can be illuminated No
Protection class IP66
Installation diameter 22 mm
Front ring colour silver
Actuator colour yellow
Product type pushbutton
Collar shape of the front frame round
Contact function groping
Logistics
Property Value
Customs tariff number 79070000
Country of origin FR
Compliance
Property Value
Sustainable Yes
Substance description Lead
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
