ZB4RTA2 | Schneider Electric
Pushbutton, with transmitter, unlit, groping, waistband round, black, front ring silver, mounting Ø 22 mm, ZB4RTA2
Unit Price (€ / pc.)
72.7328 € *
Standard delivery time from the manufacturer is: 1 Week
Pushbutton, ZB4RTA2, Schneider Electric

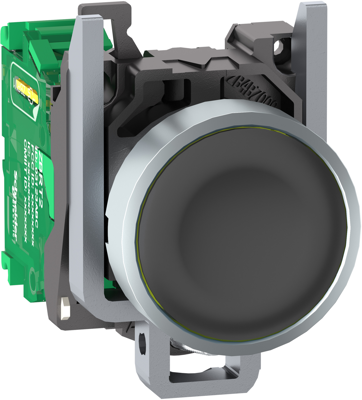

This black metal radio push-button can be mounted and installed in a 22 mm hole. It is programmed into the respective receiver using a simple button combination. The transmitter and receiver communicate via a worldwide free frequency band of 2.4 GHz and are approved for ZigBee Green Power. The possible range extends up to 100 metres in an open field and 25 metres in a closed switch cabinet.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | with transmitter | |
| can be illuminated | No | |
| Protection class | IP66 | |
| Installation diameter | 22 mm | |
| Front ring colour | silver | |
| Actuator colour | black | |
| Product type | pushbutton | |
| Collar shape of the front frame | round | |
| Contact function | groping |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 79070000 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| Sustainable | Yes |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
