ZB4FK1863 | Schneider Electric
Toggle switch, illuminable, groping, waistband round, blue, 3 x 45°, mounting Ø 30.5 mm, ZB4FK1863
Unit Price (€ / pc.)
26.8345 € *
Standard delivery time from the manufacturer is: 2 Weeks

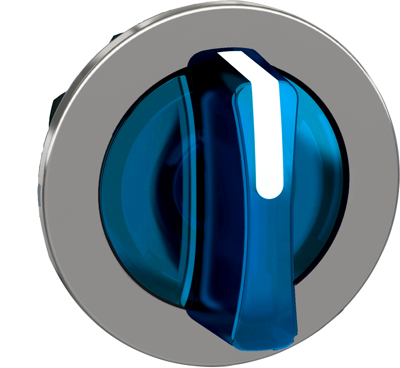

Switch head, ZB4FK1863, Schneider Electric
This 30.5mm head for illuminated selector switch provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Collar shape of the front frame | round | |
| Protection class | IP66 | |
| Contact function | groping | |
| can be illuminated | Yes | |
| Installation diameter | 30.5 mm | |
| Actuator colour | blue | |
| Product type | toggle switch | |
| Rotation angle | 3 x 45° |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
