ZB4FG09 | Schneider Electric

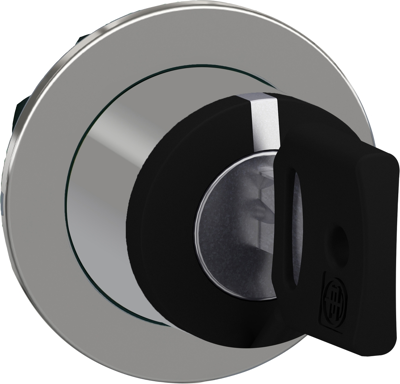

Key switch, 3 positions, unlit, latching, waistband round, black, front ring metal, 3 x 45°, mounting Ø 30.5 mm, ZB4FG09
Unit Price (€ / pc.)
34.1530 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
34.15 € *
Price list
Quantity
Price per unit*
1 pcs.
34.1530 €
3 pcs.
32.7845 €
5 pcs.
31.5231 €
*incl. VAT plus shipping costs
Subject to prior sale
Key switch, ZB4FG09, Schneider Electric
This 30.5 mm key selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete key selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
Features
- Chromium plated metal bezel
- Wide range of operating temperature from -40°C to 70°C
- Class I conforming to IEC 60536
- Shock protection level up to IK06 rating
- High vibration resistance with shake proof terminal screws
Technical specifications
| Filter | Property | Value |
|---|---|---|
| can be illuminated | No | |
| Contact function | latching | |
| Installation diameter | 30.5 mm | |
| Rotation angle | 3 x 45° | |
| Type of mounting | flush mounting | |
| Protection class | IP66/IP67/IP69/IP69K | |
| Front ring colour | metal | |
| Product type | key switch | |
| Collar shape of the front frame | round | |
| Actuator colour | black | |
| Version | 3 positions |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
