ZB4BS15 | Schneider Electric

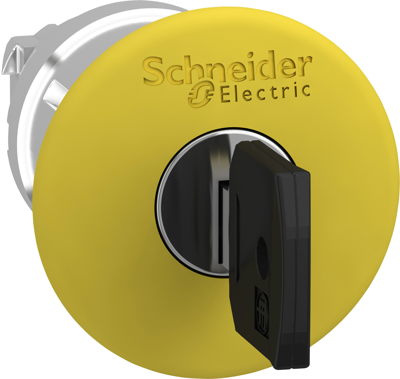

Mushroom pushbutton, key unlocking, unlit, latching, waistband round, yellow, mounting Ø 22 mm, ZB4BS15
Unit Price (€ / pc.)
43.2803 € *
Standard delivery time from the manufacturer is: 2 Weeks
Pushbutton, ZB4BS15, Schneider Electric
This ergonomic mushroom push-button front element in the colour yellow has a key release. The front element is mounted in a 22 mm hole. It is attached using a vibration-resistant connection screw. To create a complete unit, this front element can be combined with a mounting flange and a variety of different auxiliary switches and accessories. In addition to high vibration resistance and a very long service life, this device is also characterised by an extremely high possible ambient temperature. Suitable for international use due to the large number of existing product standards and certifications.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Collar shape of the front frame | round | |
| Protection class | IP66 | |
| Version | key unlocking | |
| can be illuminated | No | |
| Contact function | latching | |
| Actuator colour | yellow | |
| Installation diameter | 22 mm | |
| Product type | mushroom pushbutton |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 79070000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| SVHC free | Yes |
| RoHS conform | Yes |
