ZB4BH3 | Schneider Electric
Pushbutton switch, unlit, latching, waistband round, green, front ring silver, mounting Ø 22 mm, ZB4BH3

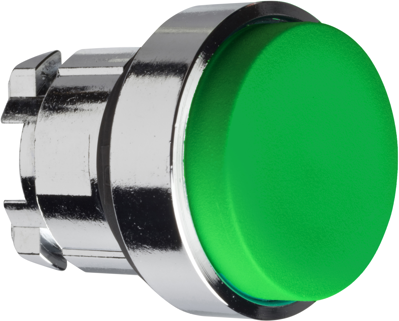

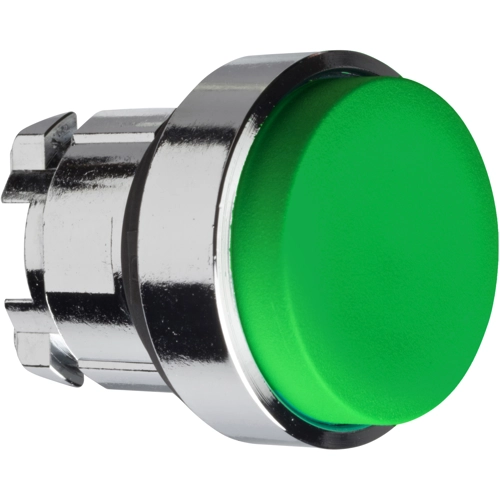

Front element, ZB4BH3, Schneider Electric
This Harmony XB4, projecting green button head operates with latched push-push mechanism. This button head provides an ergonomic interface for controlling your machines. It is easily combined with Harmony range of pushbuttons and contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
| Filter | Property | Value |
|---|---|---|
| Installation diameter | 22 mm | |
| Protection class | IP66 | |
| can be illuminated | No | |
| Contact function | latching | |
| Collar shape of the front frame | round | |
| Actuator colour | green | |
| Product type | pushbutton switch | |
| Front ring colour | silver |
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85389099 |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| RoHS conform | Yes |
| SVHC free | Yes |
