ZB4BG9K3113A | Schneider Electric

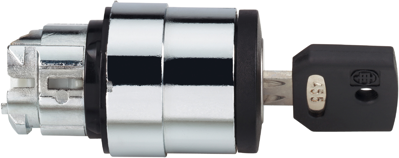

Key switch, unlit, latching, waistband round, black, front ring silver, mounting Ø 22 mm, ZB4BG9K3113A
Unit Price (€ / pc.)
66.759 € *
Standard delivery time from the manufacturer is: 2 Weeks
Key switch, ZB4BG9K3113A, Schneider Electric
Front element for Harmony ZB4 key switch. 3 positions +/- 45°. Dimensions (WxHxD) 29x29x72 mm, mounting diameter 22 mm. Mechanical life 1000000 cycles. Lock type Ronis 3113A, round head shape. With high vibration resistance and chemical resistance, ambient temperature -40 to +70 degrees °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Actuator colour | black | |
| Protection class | IP69K | |
| Collar shape of the front frame | round | |
| Front ring colour | silver | |
| Contact function | latching | |
| Product type | key switch | |
| can be illuminated | No | |
| Installation diameter | 22 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
