ZB4BG6F046 | Schneider Electric
Key switch, unlit, groping, waistband round, mounting Ø 22 mm, ZB4BG6F046
Unit Price (€ / pc.)
79.7657 € *
Standard delivery time from the manufacturer is: 2 Weeks

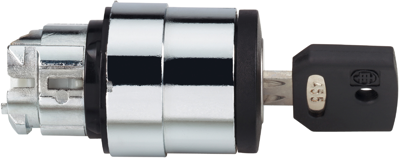

Key switch, ZB4BG6F046, Schneider Electric
Front element for Harmony ZB4 key switch. Blue front, chrome-plated metal cover. 2 positions 90°, key withdrawal left. Dimensions (WxHxD) 29x29x72 mm, mounting diameter 22 mm, weight 0.098 kg. Mechanical life 1000000 cycles. Lock type special key, round head shape, standard. With high vibration and chemical resistance, ambient temperature -40 to +70 degrees °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Protection class | IP66 | |
| Contact function | groping | |
| Installation diameter | 22 mm | |
| Collar shape of the front frame | round | |
| can be illuminated | No | |
| Product type | key switch |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
