ZB4BG6F034 | Schneider Electric
Key switch, unlit, groping, waistband round, mounting Ø 22 mm, ZB4BG6F034
Unit Price (€ / pc.)
79.7657 € *
Standard delivery time from the manufacturer is: 3 Weeks

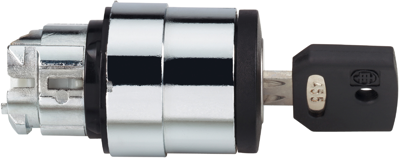

Front element, ZB4BG6F034, Schneider Electric
This head for selector switch is a separate component of the range of control and signaling units, Harmony XB4, metal, diameter 22mm. It has a chromium-plated metal bezel. It is supplied with key operated knob. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It features 2 positions maintained, at 90° and operates with spring-return-from-right-to-left mechanism. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| can be illuminated | No | |
| Protection class | IP66 | |
| Installation diameter | 22 mm | |
| Product type | key switch | |
| Collar shape of the front frame | round | |
| Contact function | groping |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| Sustainable | Yes |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
